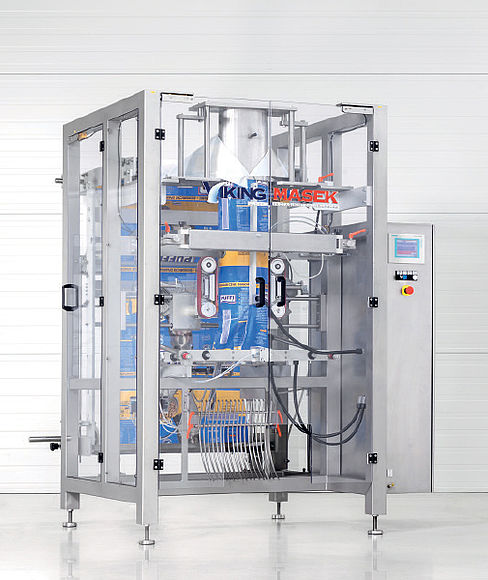

Intermittent bagmaker E400

Economical solution for large bags applications, up to 400mm wide.

New VikingMasek´s economical solution in large v/f/f/s machines, the E400 features innovative technology, flexibility, reliability at economical costs. The rugged, clean and safe construction features high reliability yet complying to the hardest demands for the packaging technology. With bag dimensions of up to 400 mm wide by 600 mm long, the E400 is a flexible, functional and economical solution for all types of packaging needs. Accuracy and user friendly are a matter of course in all our machines.

Speed
max. 50 bags/min
Bag size
max. 400 × 600 mm
min. 80 x 80 mm

Machine features



  • Robust, stainless steel, open-design frame
  • Siemens control system
  • Rotary jaw drive actuation
  • Off-the-shelf components
  • Minimal maintenance requirements
  • Short film path
  • Small machine footprint
  • No tool change-over
  • Automatic film tracking
  • VFD powered film unwind
  • Quick film splice table
  • Product stagers
  • End-seal cooling air
  • Bag deflators
  • Photo eye and encoder
  • Double guard door
  • Jaw obstruction detection
  • Runs most film structures
  • Storage for 100 product recipes
  •

Pillow
Gussetted
Flat bottom
Corner creased
Brick pack
Tin tie
Clip
Label
Resealable tape
Finger grip
Carry handle
Euroslot
Chain bag



  • Flat bottom bag assembly
  • Gusset assembly
  • Vacuum belts
  • PE (poly) sealing jaws
  • Gas flush
  • Static eliminator
  • In-feed and take-away conveyors
  • Load shelf
  • Tear notch
  • Hole punch
  • Remote diagnostics
  • Integration with variety of fillers, printers, metal detectors, label applicators, andcheckweighers
  • Washdown IP66 construction
  • Zipper applicator
  •

  • Max. speed: 50
  • Bag width: 70-400 mm
  • Bag length: max. 600 mm (jeden potah)
  • Weight: 750
  • Power supply: 1,2
  • Air pressure: 6
  • Air consumption: 5
  • Air consumption: 50
  • Bag size max.: 400 × 600
  • Bag size min.: 80 x 80
